Product Summary

The DCP010505DBP is a 1W, unregulated, isolated DC/DC converter. It provides extra features such as output disable and synchronization of switching frequencies. The DCP010505DBP is suitable for point-of-use power conversion, ground loop elimination, data acquisition, industrial control and instrumentation and test equipment. The applications of the DCP010505DBP are Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation, Test Equipment.

Parametrics

DCP010505DBP absolute maximum ratings: (1)Input voltage: 7V; (2)Storage temperature:-40 to +125℃; (3)Lead temperature (soldering, 10s):+270℃

Features

DCP010505DBP features: (1)Up To 85% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)Short-Circuit Protection; (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC DIP-14 and SOP-14 Packages.

Diagrams

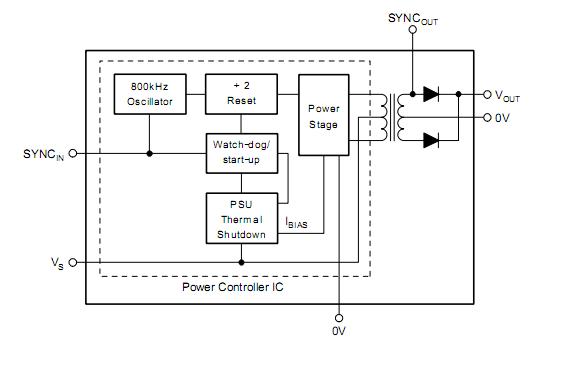

DCP010505DBP block diagram
