Product Summary

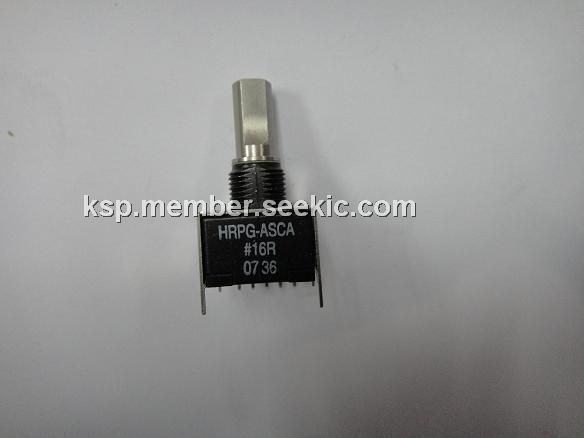

The HRPG-ASCA#16R is a miniature panel mount optical encoder, also known as Rotary Pulse Generators (RPG) and digital potentiometers. The HRPG-ASCA#16R is designed to be mounted on a front panel and used as a rotary, data-entry device. Typical applications for the HRPG-ASCA#16R include front panel instruments, audio/visual boards, and other devices requiring digital output from a turning knob.

Parametrics

HRPG-ASCA#16R absolute maximum ratings: (1)Storage Temperature:-40 to +85°C; (2)Operating Temperature:0 to +70°C; (3)Vibration:20g; (4)Supply Voltage:-0.5 to 7V; (5)Output Voltage:-0.5 to VCC; (6)Output Current:-1 to 5 mA; (7)Shaft Load – Axial:4.0N; (8)Shaft Load – Radial:0.1Nm; (9)Revolution Life:06 Rev.

Features

HRPG-ASCA#16R features: (1)Miniature size; (2)Smooth turning and detented options; (3)Multiple mounting bracket options; (4)Uses optical rel ective technology; (5)Quadrature digital output; (6)Small footprint for versatile mounting; (7)TTL compatible.

Diagrams

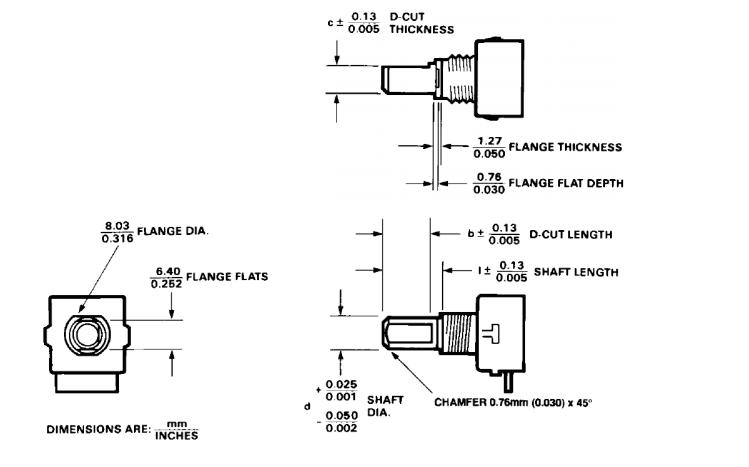

HRPG-ASCA#16R block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HRPG-ASCA#16R
HRPG-ASCA#16R

Avago Technologies

Encoders RPG SMT 120CPR

Data Sheet

0-23: $20.52
23-25: $15.96
25-100: $15.05
100-250: $14.14
