Product Summary

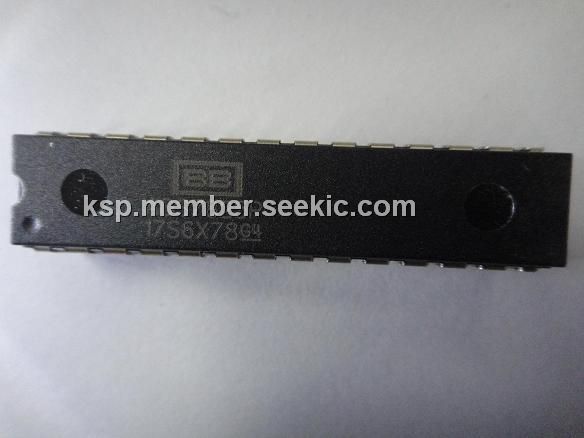

The ADS7825P is a low-power 16-bit sampling A/D with a four channel input multiplexer, S/H, clock, reference, and a parallel/serial microprocessor interface. The ADS7825P can be configured in a continuous conversion mode to sequentially digitize all four channels. The ADS7825P can acquire and convert 16 bits to within ±2.0 LSB in 25μs max while consuming only 50mW max. Laser-trimmed scaling resistors provide the standard industrial ±10V input range and channel-to-channel matching of ±0.1%. The 28-pin ADS7825P is available in a plastic 0.3inch DIP and in a SOIC, both fully specified for operation over the industrial –40℃ to +85℃ range.
Parametrics
ADS7825P absolute maximum ratings: (1)Analog Inputs: AIN0, AIN1, AIN2, AIN3: ±15V; REF: (AGND2 –0.3V) to (VS + 0.3V); CAP: Indefinite Short to AGND2,Momentary Short to VS; (2)VS1 and VS2 to AGND2: 7V; (3)VS1 to VS2: ±0.3V; (4)Difference between AGND1, AGND2 and DGND: ±0.3V; (5)Digital Inputs and Outputs: –0.3V to (VS + 0.3V); (6)Maximum Junction Temperature: 150℃; (7)Internal Power Dissipation: 825mW; (8)Lead Temperature (soldering, 10s): +300℃; (9)Maximum Input Current to Any Pin: 100mA.
Features
ADS7825P features: (1)25μs max sampling and conversion; (2)single +5V supply operation; (3)pin-compatible with 12-bit ADS7824; (4)parallel and serial data output; (5)28-pin 0.3 inch plastic DIP and SOIC; (6)±2.0 LSB max INL; (7)50mW max power dissipation; (8)50μW power down mode; (9)±10V input range, four channel multiplexer; (10)continuous conversion mode.

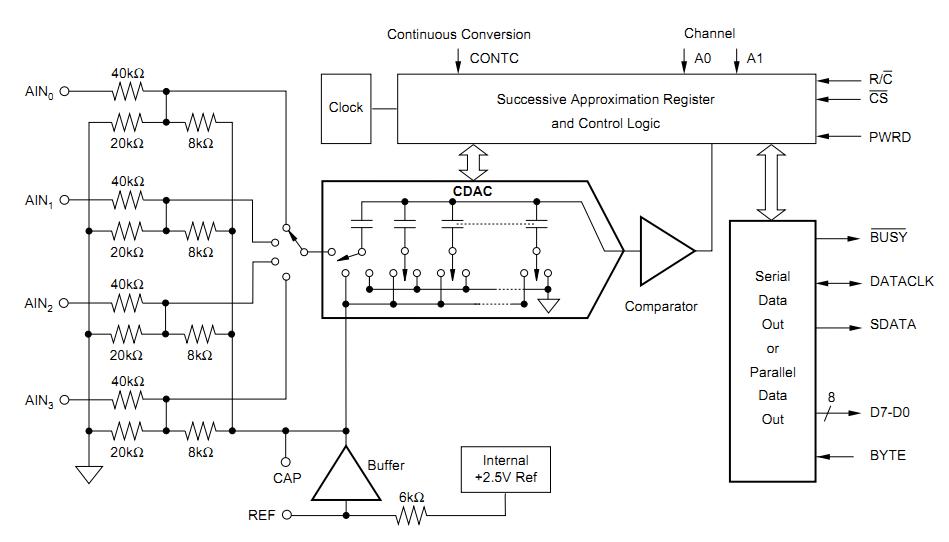

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7825P |
Texas Instruments |
ADC (A/D Converters) 4 Channel 16-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7825PB |
Texas Instruments |
ADC (A/D Converters) 4 Channel 16-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7825PG4 |
Texas Instruments |
ADC (A/D Converters) 4 Channel 16-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7825PBG4 |
Texas Instruments |
ADC (A/D Converters) 4 Ch 16B Sampling CMOS ADC |
Data Sheet |
|
|
||||||||||||
