Product Summary

The W78E058B40PL is an 8-bit microcontroller which has an in-system programmable Flash EPROM for firmware updating. The instruction set of the W78E058B40PL is fully compatible with the standard 8052. The W78E058B40PL contains a 32K bytes of main ROM and a 4K bytes of auxiliary ROM which allows the contents of the 32KB main ROM to be updated by the loader program located at the 4KB auxiliary ROM; 512 bytes of on-chip RAM; four 8-bit bi-directional and bit-addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; a serial port. These peripherals are supported by a eight sources two-level interrupt capability. To facilitate programming and verification, the ROM inside the W78E058B40PL allows the program memory to be programmed and read electronically. Once the code is confirmed, the user can protect the code for security.

Parametrics

W78E058B40PL absolute maximum ratings: (1)DC Power Supply, VDD - VSS: +6.0 V; (2)Input Voltage, VIN: VDD +0.3 V; (3)Operating Temperature, TA: 0 to 70℃; (4)Storage Temperature, TST: -55 to +150℃.

Features

W78E058B40PL features: (1)Fully static design 8-bit CMOS microcontroller; (2)32K bytes of in-system programmable Flash EPROM for Application Program (APROM); (3)4K bytes of auxiliary ROM for Loader Program (LDROM); (4)512 bytes of on-chip RAM (including 256 bytes of AUX-RAM, software selectable); (5)64K bytes program memory address space and 64K bytes data memory address space; (6)Four 8-bit bi-directional ports; (7)One 4-bit multipurpose programmable port; (8)Three 16-bit timer/counters; (9)One full duplex serial port; (10)Eight-sources, two-level interrupt capability; (11)Built-in power management; (12)Code protection.

Diagrams

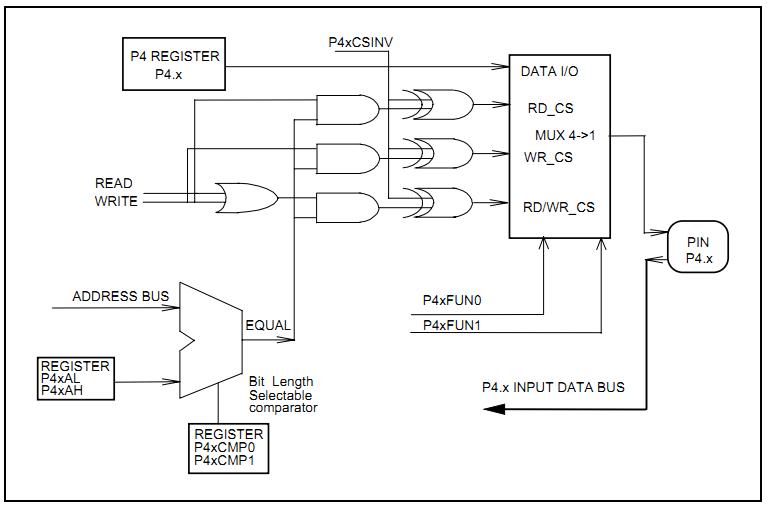

W78E058B40PL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
W78E058B40PL
W78E058B40PL


IC MCU 8-BIT 32K FLASH 44-PLCC

Data Sheet

Negotiable
