Product Summary

The A80386DX25 is an entry-level 32-bit microprocessor designed for single-user applications and operating systems such as MS-DOS and Windows. The 32-bit registers and data paths support 32-bit addresses and data types. The processor addresses up to four gigabytes of physical memory and 64 terabytes of virtual memory. The A80386DX25 integrated memory management and protection architecture includes address translation registers, multitasking hardware and a protection mechanism to support operating systems. Instruction pipelining, on-chip address translation, ensure short average instruction execution times and maximum system throughput.

Parametrics

A80386DX25 absolute maximum ratings: (1)Storage Temperature: -65 to 150℃; (2)Case Temperature Under Bias: -65 to 110℃; (3)Supply Voltage with Respect to VSS: -0.5V to 6.5V; (4)Voltage on Other Pins: -0.5V to VCC + 0.5V.

Features

A80386DX25 features: (1)Flexible 32-Bit Microprocessor; (2)Very Large Address Space; (3)Integrated Memory Management Unit; (4)Object Code Compatible with All 8086 Family Microprocessors; (5)Virtual 8086 Mode Allows Running of 8086 Software in a Protected and Paged System; (6)Hardware Debugging Support; (7)Optimized for System Performance; (8)Numerics Support via Intel387TM DX Math Coprocessor; (9)Complete System Development Support; (10)High Speed CHMOS IV Technology; (11)132 Pin Grid Array Package; (12)132 Pin Plastic Quad Flat Package.

Diagrams

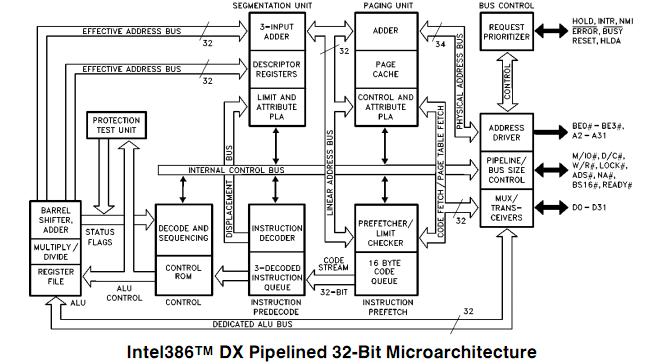

A80386DX25 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

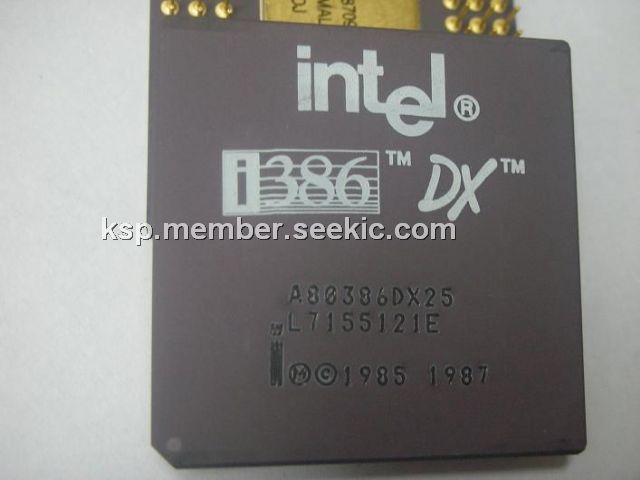

A80386DX25
A80386DX25


IC MPU 32-BIT 5V 25MHZ 132-PGA

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
A8032
A8032

Other


Data Sheet

Negotiable
A8032L
A8032L

Other


Data Sheet

Negotiable
A80386DX16
A80386DX16


IC MPU 32-BIT 5V 16MHZ 132-PGA

Data Sheet

0-1: $22.92
1-10: $21.37
10-100: $18.59
100-250: $17.70
A80386DX20
A80386DX20


IC MPU 32-BIT 5V 20MHZ 132-PGA

Data Sheet

Negotiable
A80386DX25
A80386DX25


IC MPU 32-BIT 5V 25MHZ 132-PGA

Data Sheet

Negotiable
A80386DX33
A80386DX33


IC MPU 32-BIT 5V 33MHZ 132-PGA

Data Sheet

Negotiable
