PTH05010WAH

non-isolated power module, 0.8-3.6V, 15A, 10DIP, PTH05010WAH

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.49~14.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.49~14.90

PartNumber:: PTH05010WAH

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:PTH05010WAH
US $13.49 - 14.90
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

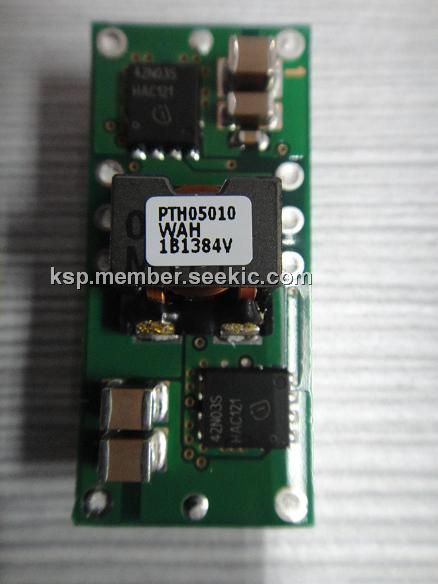

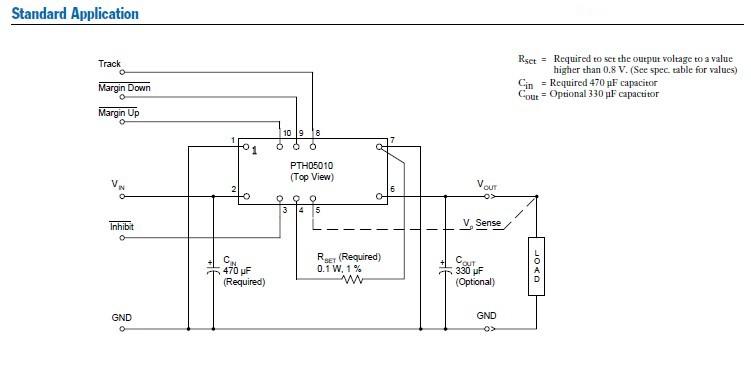

The PTH05010WAH is an non-isolated power module. It is small in size but big on performance and flexibility. The high output current, compact footprint, and industry-leading features offers system designers a versatile module for powering complex multi-processor digital systems. The product employs double-sided surface mount construction and provides highperformance step-down power conversion for up to 15 A of output current from a 5-V input bus voltage. The output voltage of the PTH05010WAH can be set to any value over the range, 0.8 V to 3.6 V, using a single resistor. This series includes Auto-Track. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down.

Parametrics

PTH05010WAH absolute maximum ratings: (1)Track Input Voltage, Vtrack: -0.3 to Vin+0.3V; (2)Operating Temperature Range, Ta, Over Vin Range: -40 to 85℃; (3)Solder Reflow Temperature, Treflow, Surface temperature of module body or pins: 235℃; (4)Storage Temperature, Ts: -40 to 125℃; (5)Mechanical Shock: 500 G’s; (6)Mechanical Vibration: 20G’s; (7)Weight: 5grams.

Features

PTH05010WAH features: (1)Up to 15-A Output Current; (2)5-V Input Voltage; (3)Wide-Output Voltage Adjust (0.8 V to 3.6 V); (4)Efficiencies up to 96%; (5)160 W/in Power Density; (6)On/Off Inhibit; (7)Output Voltage Sense; (8)Pre-Bias Startup; (9)Margin Up/Down Controls Rset = Required to set the output voltage to a value higher than 0.8 V; (10)Auto-Track Sequencing; (11)Under-Voltage Lockout; (12)Output Over-Current Protection (Non-Latching, Auto-Reset); (13)Operating Temp: –40 to +85℃; (14)Safety Agency Approvals:UL 1950, CSA 22.2 950, EN60950 VDE (Pending); (15)Point-of-Load Alliance (POLA) Compatible.
