Product Summary
The XTR105UA is a monolithic 4-20mA, two-wire current transmitter with two precision current sources. It provides complete current excitation for Platinum RTD temperature sensors and bridges, instrumentation amplifier, and current output circuitry on a single integrated circuit. The XTR105UA operates on loop power supply voltages down to 7.5V. The device is available in 14-pin plastic DIP and SO-14 surface-mount packages and is specified for the –40℃ to +85℃ industrial temperature range. The applications of the XTR105UA are industrial process control, factory automation, scada remote data acquisition, remote temperature and pressure transducers.
Parametrics
XTR105UA absolute maximum ratings: (1)Power Supply, V+ (referenced to IO pin):40V; (2)Input Voltage, VIN+, VIN- (referenced to IO pin):0V to V+; (3)Storage Temperature Range:–55℃ to +125℃; (4)Lead Temperature (soldering, 10s):+300℃; (5)Output Current Limit:Continuous; (6)Junction Temperature:+165℃.
Features
XTR105UA features: (1)low unadjusted error; (2)two precision current sources 800μA each; (3)RTD or bridge excitation; (4)linearization; (5)two or three-wire RTD operation; (6)low offset drift: 0.4μV/℃; (7)low output current noise: 30nAp-p; (8)high PSR: 110dB min; (9)high CMR: 86dB min; (10)wide supply range: 7.5V TO 36V; (11)14-PIN DIP and SO-14 SOIC packages.

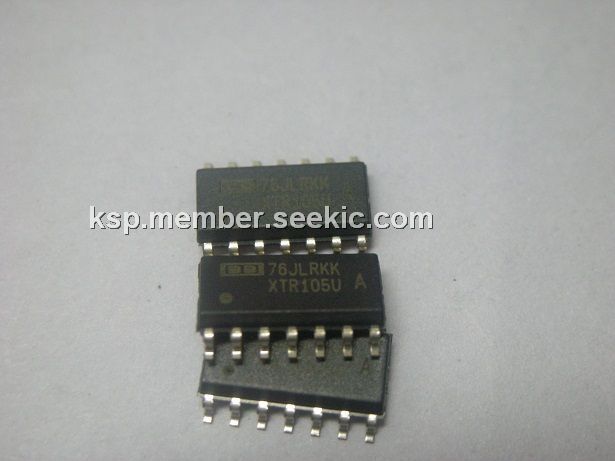

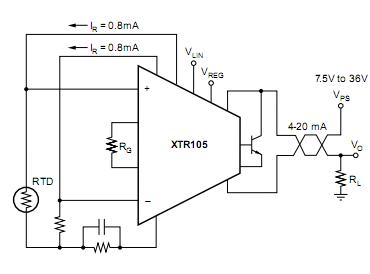

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XTR105UA |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR105UA/2K5 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR105UA/2K5E4 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR105UAG4 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
