Product Summary
The CLC016AJQ is a low-cost, monolithic, data retiming phase-locked loop (PLL) designed for high-speed serial clock and data recovery. The CLC016AJQ simplifies high-speed data recovery in multi-rate systems by incorporating auto-rate select (ARS) circuitry on chip. This function allows the user to configure the CLC016AJQ to recognize up to four different data rates and automatically adjust to provide accurate, low-jitter clock and data recovery. A single resistor is used to set each data rate anywhere between 40 Mbps and 400 Mbps. No potentiometers, crystals, or other external ICs are required to set the rate. The applications of the CLC016AJQ include SMPTE 259M serial digital interfaces: NTSC/PAL, 4:2:2 component, 360 Mbps wide screen, Serial digital video routing and distribution, Clock and data recovery for high-speed data transmission and Re-synchronization of serial data for SONET/SDH, ATM, CAD networks, medical and industrial imaging.
Parametrics
CLC016AJQ absolute maximum ratings: (1)Supply Voltage (VCC–V EE): -0.3, +6.0V; (2)Maximum Junction Temperature: +150℃; (3)Storage Temperature Range: -65 to +150℃; (4)Lead Temperature (Soldering 4 sec): +260℃; (5)ESD Rating: 2kV; (6)Package Thermal Resistance: 85℃/W.
Features
CLC016AJQ features: (1)Retimed data output; (2)Recovered clock output; (3)Auto and manual rate select modes; (4)Four user-configurable data rates; (5)No potentiometers required; (6)External loop bandwidth control; (7)Frequency detector for lock acquisition; (8)Carrier detect output; (9)Output MUTE function; (10)Single supply operation: +5V or -5.2V; (11)Low cost.

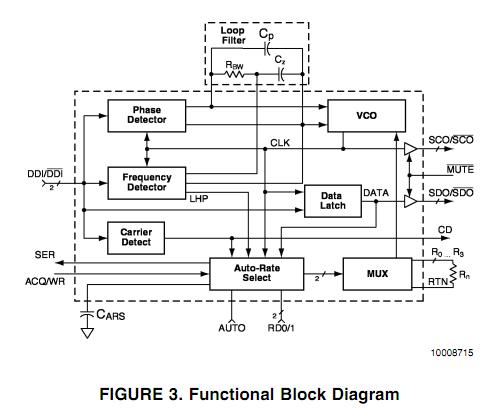

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CLC016AJQ/NOPB |
|
IC DATA RETIMING PLL 28-PLCC |
Data Sheet |
Negotiable |
|
||||
|
CLC016AJQ-TR13/NOPB |
|
IC DATA RETIMING PLL 28-PLCC |
Data Sheet |
Negotiable |
|
||||
