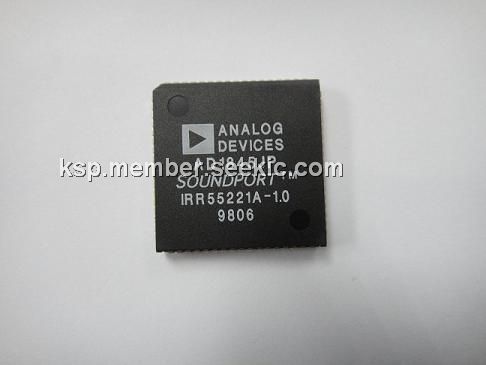

The AD1845JP is a Parallel-Port 16-Bit SoundPort Stereo Codec. It provides a complete, single chip computer audio solution for business audio and multimedia applications.
Parametrics
AD1845JP absolute maximum ratings: (1)Power Supplies, Digital (VDD): –0.3 to 6.0 V; Analog (VCC): –0.3 to 6.0 V; (2)Input Current (Except Supply Pins): ±10.0 mA max; (3)Analog Input Voltage (Signal Pins): –0.3 to VCC +0.3 V; (4)Digital Input Voltage (Signal Pins) –0.3 to VDD +0.3 V; (5)Ambient Temperature (Operating): 0 to +70℃; (6)Storage Temperature: –65 to +150℃.
Features
AD1845JP features: (1)MPC Level-2+ Compliant Mixing; (2)16 mA Bus Drive Capability; (3)Supports Two DMA Channels for Full Duplex Operation; (4)On-Chip Capture and Playback FIFOs; (5)Advanced Power-Down Modes; (6)Programmable Gain and Attenuation; (7)Sample Rates from 4.0 kHz to 50 kHz Derived from a Single Clock or Crystal Input; (8)68-Lead PLCC, 100-Lead TQFP Packages; (9)Operation from +5 V Supplies; (10)Byte-Wide Parallel Interface to ISA and EISA Buses; (11)Pin Compatible with AD1848, AD1846, CS4248, CS4231.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1845JP |
Analog Devices Inc |
IC CODEC STEREO 5V 16BIT 68PLCC |
Data Sheet |
|
|
||||||
|
AD1845JP-REEL |
Analog Devices Inc |
IC CODEC STEREO 5V 16BIT 68PLCC |
Data Sheet |
|
|
||||||
 |
AD1845JPZ-REEL |
Analog Devices Inc |
IC CODEC STEREO 5V 16BIT 68PLCC |
Data Sheet |
|
|
||||||
|
AD1845JPZ |
Analog Devices Inc |
IC CODEC STEREO 5V 16BIT 68PLCC |
Data Sheet |
|
|
||||||
