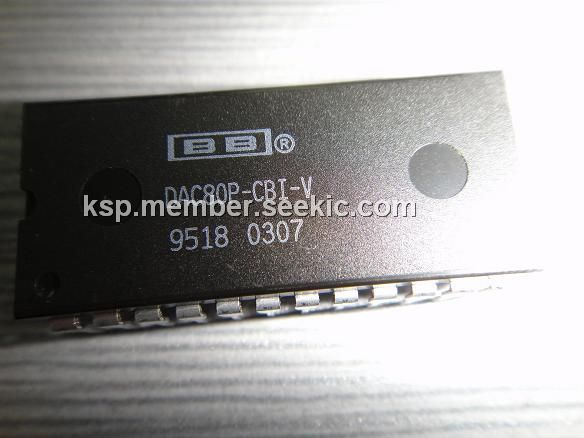

Product Summary
The DAC80P-CBI-V is a monolithic digital-to-analog converter. It is pin-for-pin equivalent to the industry standard DAC80 first introduced by Burr-Brown. Its single-chip design includes the output amplifier and provides a highly stable reference capable of supplying up to 2.5mA to an external load without degradation of D/A performance. The DAC80P-CBI-V uses proven circuit techniques to provide accurate and reliable performance over temperature and power supply variations. For applications requiring both reliability and low cost, the DAC80P-CBI-V in a molded plastic package offers the same electrical performance over temperature as the ceramic model. The DAC80P-CBI-V is available with voltage output only.
Parametrics
DAC80P-CBI-V absolute maximum ratings: (1)+VCC to Common:0V to +18V; (2)–VCC to Common:0V to –18V; (3)Digital Data Inputs to Common:–1V to +18V; (4)Reference Output to Common:±VCC; (5)Reference Input to Common:±VCC; (6)Bipolar Offset to Common:±VCC; (7)10V Range R to Common:±VCC; (8)20V Range R to Common:±VCC; (9)External Voltage to DAC Output:–5V to +5V; (10)Lead Temperature (soldering, 10s):+300℃; (11)Max Junction Temperature:165℃; (12)Thermal Resistance: 100℃/W.
Features
DAC80P-CBI-V features: (1)industry standard pinout; (2)full ±10V swing with VCC =±12VDC; (3)digital inputs are TTL- and CMOS-compatible; (4)guaranteed specifications with ±12V and ±15V supplies; (5)±1/2LSB maximum nonlinearity: 0℃ to +70℃; (6)settling time: 4μs max to ±0.01% of Full Scale; (7)guaranteed monotonicity:0℃ to +70℃; (8)two package options: Hermetic side-brazed ceramic and low-cost molded plastic.

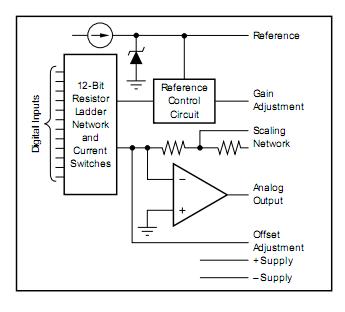

Diagrams
