Product Summary

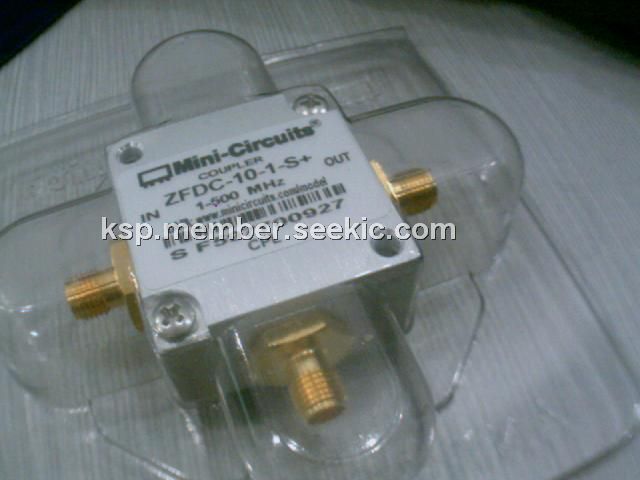

The ZFDC-10-1-S+ is a Directional Coupler. The applications of it are VHF/UHF, instrumentation, communication receivers & transmitters, amateur radio.

Parametrics

ZFDC-10-1-S+ absolute maximum ratings: (1)Operating Temperature:-55°C to 100°C; (2)Storage Temperature:-55°C to 100°C.

Features

ZFDC-10-1-S+ features: (1)excellent directivity, 33 dB typ.; (2)excellent mainline loss, 0.8 dB typ.; (3)rugged shielded case.

Diagrams

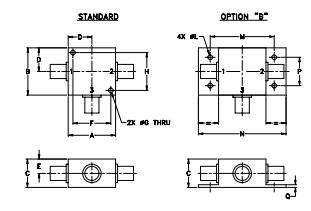

ZFDC-10-1-S+ package dimensions
