Product Summary
The PTN04050AAH is an adjustable output, positive-to-negative, integrated switching regulator. In new designs, the PTN04050AAH should be considered in place of the PT5020 series of positive-to-negative integrated switching regulator products. The PTN04050AAH is smaller and lighter than its predecessor, with improved electrical performance characteristics, while operating over a wider input voltage range, with an adjustable output voltage. It is suitable for General-Purpose, Industrial Controls, HVAC Systems, Test and Measurement, Medical Instrumentation, AC/DC Adaptors, Vehicles, Marine, and Avionics.
Parametrics
PTN04050AAH absolute maximum ratings: (1)Operating free-air temperature:-40 to 85℃; (2)Leaded temperature (H & D suffix):260℃; (3)Solder reflow temperature (S suffix):235℃; (4)Solder reflow temperature (Z suffix):260℃; (5)Storage temperature:-40 to 125℃.
Features
PTN04050AAH features: (1)Up to 6-W Output Power; (2)Wide-Input Voltage(2.9 V to 7 V); (3)Wide-Output Voltage Adjust(–15 V to –3.3 V); (4)High Efficiency (Up to 84%); (5)On/Off Inhibit; (6)Output Current Limit; (7)Undervoltage Lockout; (8)Overtemperature Shutdown; (9)Operating Temperature: –40 °C to 85 °C; (10)Surface-Mount Package Available.

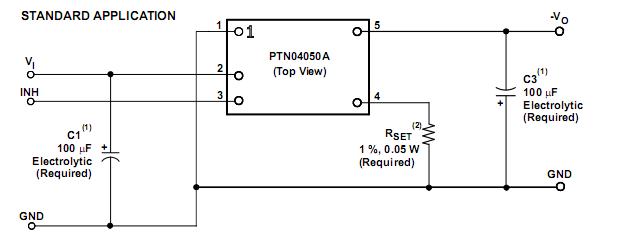

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

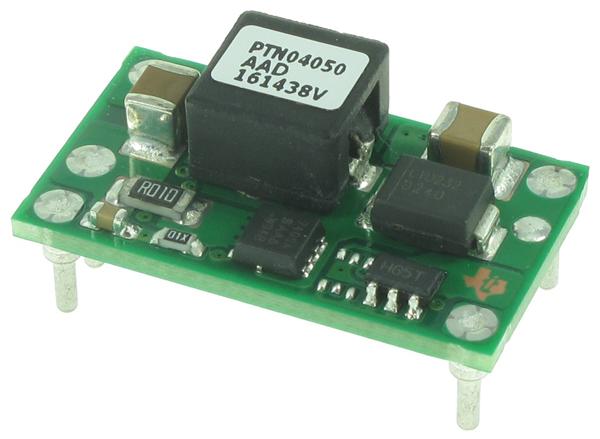

 PTN04050AAH |
Texas Instruments |
DC/DC Converters 6-W 3.3/5-V Input Wide Adjust Output |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
PTN0402E1000DGTS |
Vishay/Thin Film |
Thin Film Resistors - SMD 100ohm .5% 25ppm GOLD |
Data Sheet |
|
|
||||||||||||||
|
PTN0402E2001FBT |
Vishay/Thin Film |
Thin Film Resistors - SMD 2K OHM 1% 25PPM |
Data Sheet |
|
|
||||||||||||||
|
PTN0402E2701FBT |
Vishay/Thin Film |
Thin Film Resistors - SMD 2.7K OHM 1% 25PPM |
Data Sheet |
|
|
||||||||||||||
 |
PTN04050CAZ |
Texas Instruments |
DC/DC Converters 12W 3.3/5V In Wide Adj Out Boost Cnvtr |
Data Sheet |
|
|
||||||||||||||
 |
PTN04050CAH |
Texas Instruments |
DC/DC Converters 12W 3.3/5V In Wide Adj Out Boost Cnvtr |
Data Sheet |
|
|
||||||||||||||
|
PTN04050AAD |
Texas Instruments |
DC/DC Converters 6-W 3.3/5-V Input Wide Adjust Output |
Data Sheet |
|
|
||||||||||||||
