Product Summary

The TMS320DM642AZDK DSP is the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320DM642AZDK device is based on the second generation high-performance, advanced VelociTI. very-long-instruction-word VLIW) architecture (VelociTI.2.) developed by Texas Instruments (TI), making the TMS320DM642AZDK an excellent choice for digital media applications. The TMS320DM642AZDK is a code-compatible member of the C6000 DSP platform.

Parametrics

TMS320DM642AZDK absolute maximum ratings: (1)Supply voltage ranges: CVDD: -0.3 V to 1.8 V; DVDD: -0.3 V to 4 V; (2)Input voltage ranges: (except PCI), VI: -0.3 V to 4 V; (PCI), VIP: -0.5 V to DVDD + 0.5 V; (3)Output voltage ranges: (except PCI), VO -0.3 V to 4 V; (PCI), VOP: -0.5 V to DVDD + 0.5 V; (4)Operating case temperature ranges, TC: (default) 0℃ to 90℃; (A version) [A-500, A-600]: -40℃ to 105℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Package Temperature Cycling: Temperature Range -40℃ to 125℃; Number of Cycles 500.

Features

TMS320DM642AZDK features: (1)High-Performance Digital Media Processor; (2)Instruction Set Features; (3)Endianess: Little Endian, Big Endian; (4)Management Data Input/Output (MDIO); (5)Host-Port Interface (HPI) [32-/16-Bit]; (6)Inter-Integrated Circuit (I2C Bus.); (7)Two Multichannel Buffered Serial Ports; (8)Three 32-Bit General-Purpose Timers; (9)Sixteen General-Purpose I/O (GPIO) Pins; (10)Flexible PLL Clock Generator; (11)0.13-μm/6-Level Cu Metal Process (CMOS); (12)3.3-V I/O, 1.2-V Internal (-500); (13)3.3-V I/O, 1.4-V Internal (A-500, A-600, -600, -720).

Diagrams

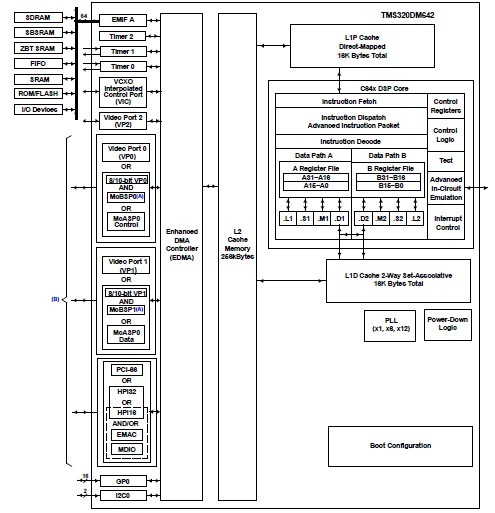

TMS320DM642AZDK block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMS320DM642AZDK5
TMS320DM642AZDK5
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP
Data Sheet
0-42: $28.97
42-100: $27.37
100-250: $26.37
TMS320DM642AZDK6
TMS320DM642AZDK6
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP
Data Sheet
0-43: $31.88
43-100: $30.12
TMS320DM642AZDK7
TMS320DM642AZDK7
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP
Data Sheet
0-1: $46.10
1-25: $44.53
25-100: $41.69
TMS320DM642AZDKA5
TMS320DM642AZDKA5
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP
Data Sheet
0-42: $34.80
42-100: $32.87
TMS320DM642AZDKA6
TMS320DM642AZDKA6
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP
Data Sheet
0-43: $38.23
43-100: $36.16
