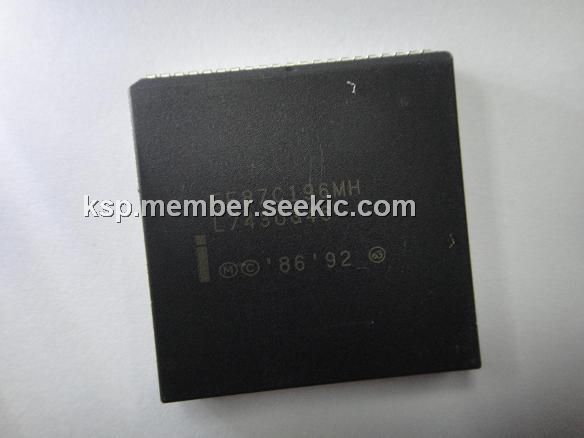

EE87C196MH

96 microcontroller, PLCC, -0.5 V to + 13.0 V, 16-bit, 1.5 W, EE87C196MH

Rated 5 Rating 5 | reviews | Write a review

Price:: US $37.30~49.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $37.30~49.52

PartNumber:: EE87C196MH

Brand:: Intel Corporation - Intel | Pack: PLCC | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-08

From Other Seller

Part Number:EE87C196MH
US $37.30 - 49.52
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EE87C196MH is a 16-bit MCS 96 microcontroller. It is designed primarily to control three-phase AC induction and DC brushless motors. It features an enhanced three-phase waveform generator specifically designed for use in inverter motor-control applications. The EE87C196MH provides pulsewidth modulation and three-phase sine wave generation with minimal CPU intervention. It generates three complementary non-overlapping PWM pulses with resolutions of 0.125 μs (edge triggered) or 0.250 μs (centered).

Parametrics

EE87C196MH absolute maximum ratings: (1)Storage Temperature: -65℃ to + 150℃; (2)Ambient Temperature under Bias: -40℃ to + 85℃; (3)Voltage from VPP or EA# to VSS or ANGND: -0.5 V to + 13.0 V; (4)Voltage with respect to VSS or ANGND: -0.5 V to + 7.0 V; (5)Power Dissipation: 1.5 W.

Features

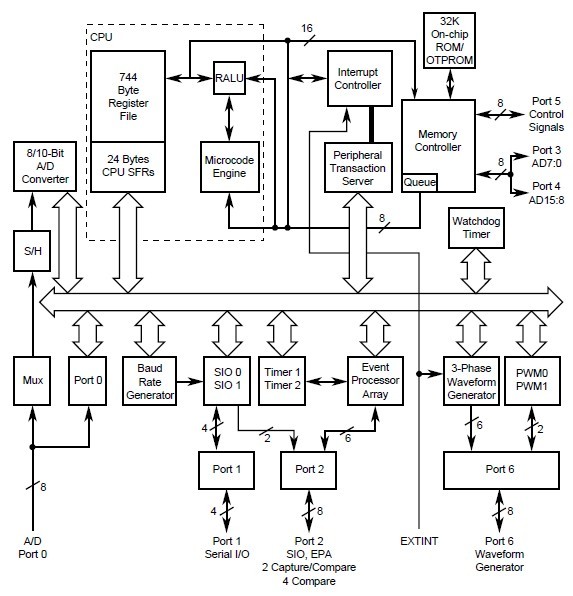

EE87C196MH features: (1)High Performance CHMOS 16-bit CPU; (2)16 MHz Operating Frequency; (3)32 Kbytes of On-chip OTPROM/ROM; (4)744 Bytes of On-chip Register RAM; (5)Register-to-register Architecture; (6)16 Prioritized Interrupt Sources; (7)Peripheral Transaction Server (PTS) with 15 Prioritized Sources; (8)Up to 52 I/O Lines; (9)3-phase Complementary Waveform Generator; (10)8-channel 8- or 10-bit A/D with Sample and Hold; (11)2-channel UART.
