Product Summary

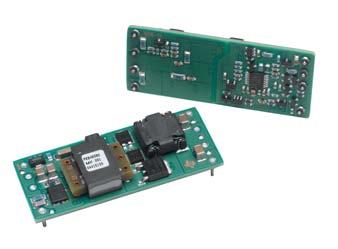

The PTQA430025N2AD is a single-output isolated DC/DC converter. It is housed in an industry standard quarter-brick package. The PTQA430025N2AD is rated up to 100W with a maximum load current of 30 amps. The PTQA430025N2AD operates from a standard 48-V telecom central office (CO) supply and occupies only 3.3 in 2 of PCB area. The PTQA430025N2AD is suitable for distributed power applications in both telecom and computing environments, and may be used for powering high-end microprocessors, DSPs, general purpose logic and analog. The PTQA430025N2AD is fully integrated for stand-alone operation, and require no additional components.
Parametrics
PTQA430025N2AD absolute maximum ratings: (1)TA, Operating Temperature Range: – 40 to 85℃; (2)VI, Maximum Input Voltage: 100 V; (3)PO, Maximum Output Power: 100 W; (4)TS, Storage Temperature: – 40 to 125℃.
Features
PTQA430025N2AD features: (1)100-W Output; (2)Input Voltage Range: 36 V to 75 V; (3)92% Efficiency; (4)1500 Vdc Isolation; (5)Fast Transient Response; (6)On/Off Control; (7)Overcurrent Protection; (8)Differential Remote Sense; (9)Adjustable Output Voltage; (10)Output Overvoltage Protection; (11)Over-Temperature Shutdown; (12)Undervoltage Lockout; (13)Standard 1/4-Brick Footprint; (14)UL Safety Agency Approval.

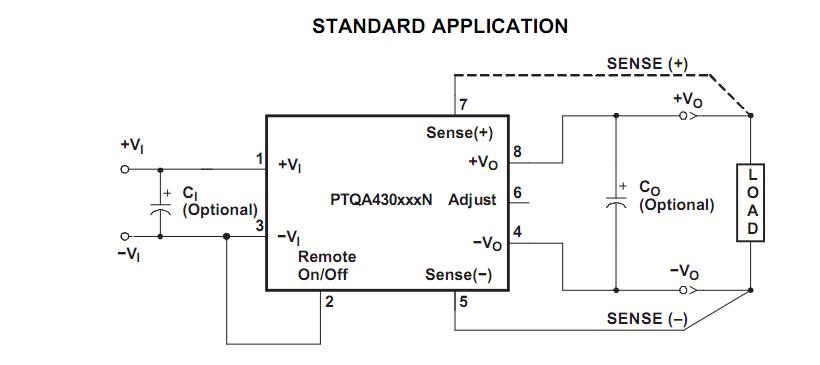

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PTQA430025N2AD |
![]() Texas Instruments |
![]() DC/DC Converters 100W 48V Input Iso DC-DC Converter |
![]() Data Sheet |
![]()
|
|
||||||||||||
