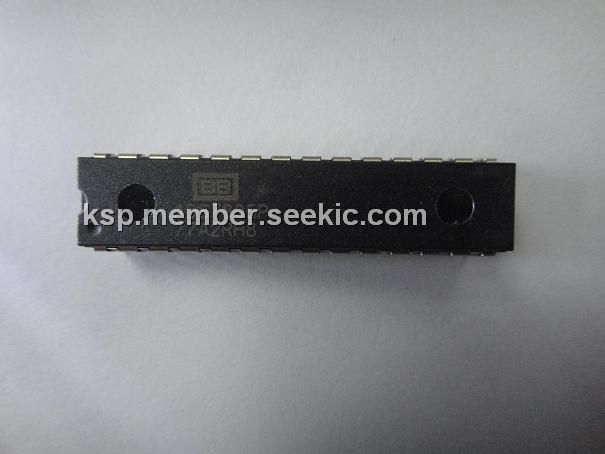

Product Summary

The ADS7805P is a complete 16-bit sampling, Analog-to-Digital (A/D) converter using state-of-the-art CMOS structures. The ADS7805U contains a complete 16-bit, capacitor-based, Successive Approximation Register (SAR) A/D converter with Sample-and-Hold (S/H), reference, clock, interface for microprocessor use, and 3-state output drivers. The ADS7805U is specified at a 100kHz sampling rate and ensured over the full temperature range. The ADS7805U is available in a 0.3 inch DIP-28 and an SO-28 package. Both are fully specified for operation over the industrial –25℃ to +85℃ range; however, they will function over the –40℃ to +85℃ temperature range.

Parametrics

ADS7805P absolute maximum ratings: (1)Analog Inputs: VIN . ±25V; REF: +VANA + 0.3V to AGND2 – 0.3V; CAP: Indifinite Short to AGND2 Momentary Short to VANA; (2)Ground Voltage Differences: DGND, AGND1, AGND2: ±0.3V; (3)VANA: 7V; (4)VDIG to VANA: +0.3V; (5)VDIG: 7V; (6)Digital Inputs: –0.3V to +VDIG + 0.3V; (7)Maximum Junction Temperature: +165℃; (8)Internal Power Dissipation: 825mW; (9)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7805P features: (1)100kHz min sampling rate; (2)standard ±10V input range; (3)86dB min sinad with 20kHz input; (4)±3.0 LSB max INL; (5)DNL: 16 Bits No Missing Codes; (6)SINGLE +5V supply operation; (7)pin-compatible with 12-bit ADS7804; (8)uses internal or external reference; (9)full parallel data output; (10)100mW max power dissipation; (11)0.3 inch DIP-28 and SO-28.

Diagrams

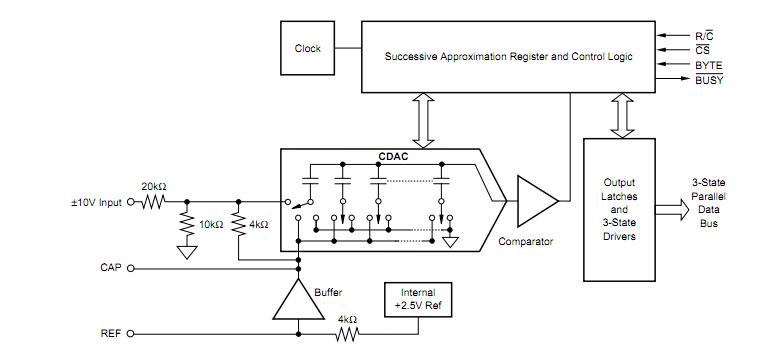

ADS7805P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADS7805P
ADS7805P
Texas Instruments
ADC (A/D Converters) 16-Bit 10us Sampling CMOS
Data Sheet
0-1: $30.21
1-25: $26.15
25-100: $24.50
100-250: $22.89
ADS7805PB
ADS7805PB
Texas Instruments
ADC (A/D Converters) 16-Bit 10us Sampling CMOS
Data Sheet
0-1: $34.11
1-25: $30.46
25-100: $28.77
100-250: $27.72
ADS7805PBG4
ADS7805PBG4
Texas Instruments
ADC (A/D Converters) 16-Bit 10us Sampling CMOS
Data Sheet
0-1: $34.11
1-25: $30.46
25-100: $28.77
100-250: $27.72
ADS7805PG4
ADS7805PG4
Texas Instruments
ADC (A/D Converters) 16-Bit 10us Sampling CMOS
Data Sheet
0-1: $27.24
1-25: $24.50
25-100: $23.38
100-250: $22.06
