Product Summary

The PTH12050WAH is an non-isolated power module that features Auto-Track Sequencing. Auto-Track simplifies the sequencing of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Although small in size, the PTH12050WAH is rated for up to 6 A of output current, and is an ideal choice in applications where space, performance, and a power-up sequencing capability are important attributes. The applications of the PTH12050WAH are Telecom, Industrial, and General-Purpose Circuits.

Parametrics

PTH12050WAH absolute maximum ratings: (1)VI, Track input voltage: – 0.3 V to V I +0.3 V; (2)TA, Operating temperature range: – 40℃ to 85℃; (3)Twave, Wave solder temperature: 235℃; (4)Treflow, Solder reflow temperature: 260℃; (5)Tstg, Storage temperature: – 55 to 125℃.

Features

PTH12050WAH features: (1)Up to 6-A Output Current; (2)12-V Input Voltage; (3)Wide-Output Voltage Adjust (1.2 V to 5.5 V)/(0.8 V to 1.8 V); (4)Efficiencies up to 93%; (5)200 W/in 3 Power Density; (6)On/Off Inhibit; (7)Undervoltage Lockout; (8)Operating Temperature: – 40 to 85℃; (9)Auto-Track Sequencing; (10)Output Overcurrent Protection (Nonlatching, Auto-Reset); (11)Safety Agency Approvals: UL/IEC/CSA-22.2 60950-1; (12)Point-of-Load Alliance ( POLA ) Compatible.

Diagrams

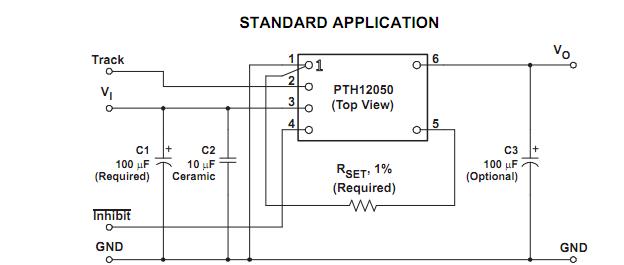

PTH12050WAH standard application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PTH12050WAH
PTH12050WAH

Emerson / Astec Power

Power Management Modules 33W 1.2V-5.5V 6A

Data Sheet

0-171: $5.44
