PTH12000WAH

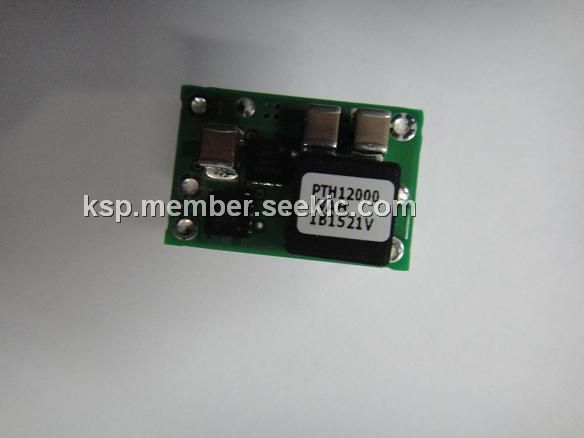

non-isolated power module, PTH12000WAH, Texas Instruments, 12V, 6A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $9.21~12.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $9.21~12.95

PartNumber:: PTH12000WAH

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-13

From Other Seller

Part Number:PTH12000WAH
US $9.21 - 12.95
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PTH12000WAH is an non-isolated power module. It is small in size and high on performance. Using double-sided surface mount construction and synchronous rectification technology, the PTH12000WAH delivers up to 6 A of output current while occupying a PCB area of about half the size of a standard postage stamp. The PTH12000WAH is an ideal choice for applications where space, performance and cost are important design constraints.

Parametrics

PTH12000WAH absolute maximum ratings: (1)Operating Temperature Range, Ta: -40 to +85℃; (2)Solder Reflow Temperature(AS), Treflow: 235℃; (3)Solder Reflow Temperature(AZ), Treflow: 260℃; (4)Wave SolderTemperature(AH/AD), TWave: 260℃; (5)Storage Temperature, Ts: –55 to +125℃; (6)Mechanical Shock: 500 G; (7)Mechanical Vibration: 15 G; (8)Weight: 2 grams.

Features

PTH12000WAH features: (1)Up to 6-A Output Current; (2)12-V Input Voltage; (3)Wide-Output Voltage Adjust (1.2 V to 5.5 V)/(0.8 V to 1.8 V); (4)230 W/in Power Density; (5)Efficiencies up to 92 %; (6)Pre-Bias Startup; (7)On/Off Inhibit; (8)Under-Voltage Lockout; (9)Output Over-Current Protection (Non-Latching, Auto-Reset); (10)Operating Temp: –40 to +85℃; (11)Surface Mount Package; (12)Safety Agency Approvals: UL/cUL 60950, EN60950 VDE.
