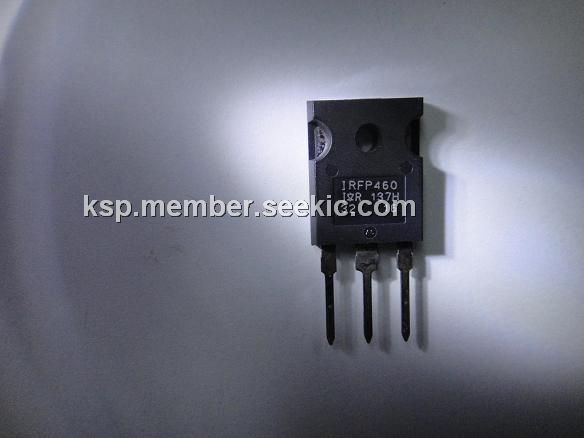

IRFP460

IRFP460, HEXFET power MOSFET, TO-247AC, 500V, 20A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.27~1.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.27~1.52

PartNumber:: IRFP460

Brand:: International Rectifier - IR | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:IRFP460
US $1.27 - 1.52
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP460 is an HEXFET power MOSFET. The IRFP460 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because its isolated mounting hole. The IRFP460 also provides greater creepage distances between pins to meet the requirements of most safety specifications.

Parametrics

IRFP460 absolute maximum ratings: (1)Drain-Source Voltage: 500V; (2)Gate-Source Voltage: ± 20V; (3)Continuous Drain Current VGS at 10 V: TC = 25℃: 20A, TC = 100℃: 13A; (4)Pulsed Drain Current: 80A; (5)Linear Derating Factor: 2.2 W/℃; (6)Single Pulse Avalanche Energyb: 960 mJ ; (7)Repetitive Avalanche Current: 20A ; (8)Repetitive Avalanche Energya: 28 mJ ; (9)Maximum Power Dissipation TC = 25℃: 280 W ; (10)Peak Diode Recovery dV/dt: 3.5 V/ns ; (11)Operating Junction and Storage Temperature Range: -55℃ to +150℃ ; (12)Soldering Recommendations (Peak Temperature) for 10 s: 300℃; (13)Mounting Torque 6-32 or M3 screw: 10 lbf·in, 1.1 N·m.

Features

IRFP460 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead free.
