Product Summary

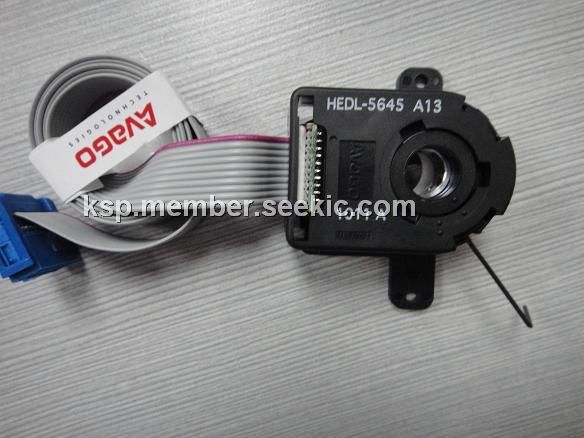

The HEDL-5645 A13 is an Encoder Line Driver. The line driver offers enhanced performance when the encoder is used in noisy environments, or when it is required to drive long distances.

Parametrics

HEDL-5645 A13 absolute maximum ratings: (1)Termination: 10 conductor ribbon cable with 10 position IDC Berg connector; (2)Electrical Output: Complementary outputs: A, A, B, B, I, I; (3)Line Driver Components: 26LS31 line driver IC, decoupling capacitor on PC board; (4)Operating Temperature range: 0 to 70℃; (5)Storage Temperature -40 to 70℃.

Features

HEDL-5645 A13 features: (1)Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series); (2)Complementary Outputs Industry Standard Line Driver IC; (3)Single 5 V Supply; (4)Onboard Bypass Capacitor; (5)70℃ and 100℃ Versions Available.

Diagrams

HEDL-5645 A13 block diagram
