Product Summary

The XTR106UA is a low cost, monolithic 4-20mA, two-wire current transmitter designed for bridge sensors. It provides complete bridge excitation (2.5V or 5V reference), instrumentation amplifier, sensor linearization, and current output circuitry. Current for powering additional external input circuitry is available from the VREG pin. The XTR106UA is available in 14-pin plastic DIP and SO-14 surface-mount packages and is specified for the -40℃ to +85℃ temperature range. Operation is from -55℃ to +125℃. The applications of the XTR106UA are pressure bridge transmitter, strain gage transmitter, temperature bridge transmitter, industrial process control, scada remote data acquisition, remote transducers, weighing systems, accelerometers.

Parametrics

XTR106UA absolute maximum ratings: (1)Power Supply, V+ (referenced to IO pin):40V; (2)Input Voltage, VIN+, VIN- (referenced to IRET pin):0V to V+; (3)Storage Temperature Range:–55℃ to +125℃; (4)Lead Temperature (soldering, 10s):+300℃; (5)Output Current Limit:Continuous; (6)Junction Temperature:+165℃.

Features

XTR106UA features: (1)low total unadjusted error; (2)2.5V, 5V bridge excitation reference; (3)5.1V regulator output; (4)low span drift: ±25ppm/℃ max; (5)low offset drift: 0.25μV/℃; (6)high PSR: 110dB min; (7)high CMR: 86dB min; (8)wide supply range: 7.5V to 36V; (9)14-PIN DIP and SO-14 surface-mount.

Diagrams

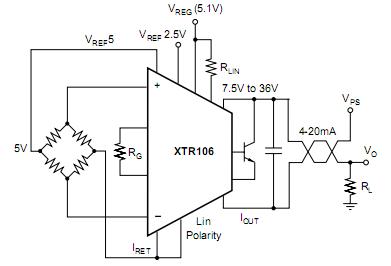

XTR106UA circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

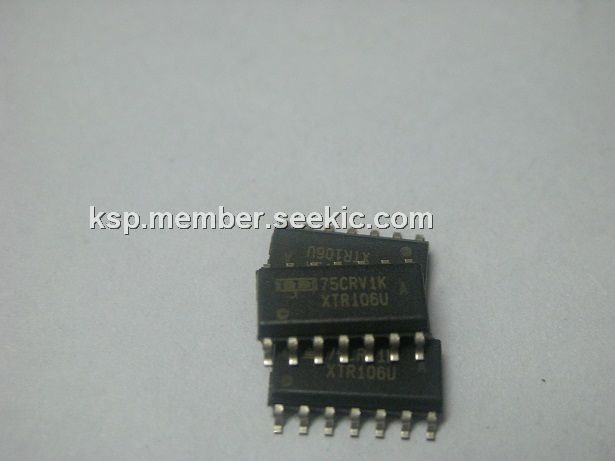

XTR106UA
XTR106UA

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin

Data Sheet

0-1: $6.48
1-10: $5.82
10-25: $5.18
25-50: $4.89
XTR106UA/2K5
XTR106UA/2K5

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin

Data Sheet

0-2000: $2.70
2000-2500: $2.70
XTR106UAG4
XTR106UAG4

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin

Data Sheet

0-1: $6.48
1-10: $5.82
10-25: $5.18
25-50: $4.89
XTR106UA/2K5E4
XTR106UA/2K5E4

Texas Instruments

Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin

Data Sheet

0-2000: $2.70
2000-2500: $2.70
