Product Summary

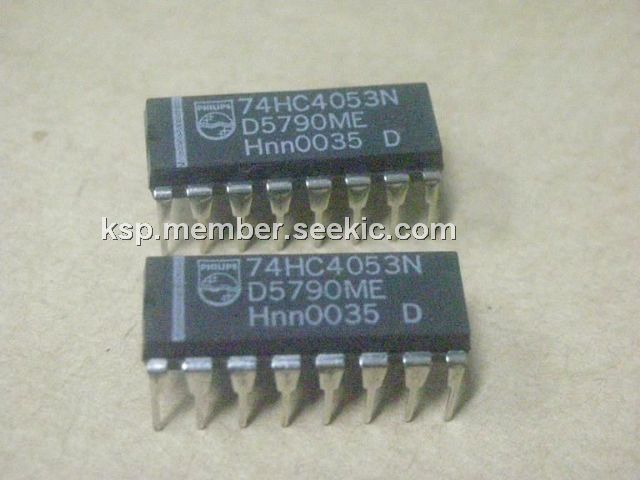

The 74HC4053N is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. It is specified in compliance with JEDEC standard no. 7A. The 74HC4053N is a triple 2-channel analog multiplexer/demultiplexer with a common enable input (E). Each multiplexer/demultiplexer has two independent inputs/outputs (nY0 and nY1), a common input/output (nZ) and three digital select inputs (Sn).
Parametrics
74HC4053N absolute maximum ratings: (1)supply voltage, VCC: -0.5 to +11.0V; (2)input clamping current, IIK: ±20mA; (3)switch clamping current, ISK: ±20mA.
Features
74HC4053N features: (1)Low ON resistance; (2)Logic level translation; (3)Complies with JEDEC standard no. 7A; (4)ESD protection; (5)HBM EIA/JESD22-A114-C exceeds 2000V; (6)MM EIA/JESD22-A115-A exceeds 200V; (7)Multiple package options; (8)Specified from -40℃ to +85℃ and from -40℃ to +125℃.
