Product Summary

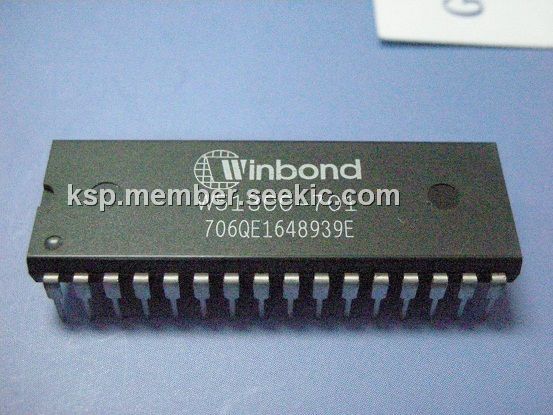

The W51300-701 is a voice recorder IC. The W51300-701 contains A/D and D/A converters to digitize and reproduce voice signals. An antialias/smoothing filter, AGC circuit, MIC preamplifier, and speaker power amplifier are used to smooth the input voice and set the output voice to a certain volume while minimizing the number of extra components needed. The recording time depends on the size of the external memory.
Parametrics
W51300-701 absolute maximum ratings: (1)Operating Temp. TOPR: - 0 to +70 °C; (2)Storage Temp. TSTG: -55 to +150 °C; (3)Power Supply VCC-VSS: -0.3 to +7.0 V; (4)Input DC Voltage VIN: VSS -0.3 to VCC +0.3 V.
Features
W51300-701 features: (1)Modified ADM algorithm with 24 KHz sampling frequency when ROSC= 620 KΩ; (2)Operates with Winbond serial flash EPROM; (3)Built-in A/D, D/A, MIC preamplifier, AGC circuit, antialias/smoothing filter, speaker power amplifier, and LED indicator; (4)8 input trigger pins (L_REC, E_PLAY, L_PLAY, FWD, BWD, STOP, ERASE, RESET) debounced to ensure noise-free operations; (5)Single/multi-voice segment operation, normal/CPU mode selected by pin option (SMODE, CPU); (6)Cascadable for longer duration by directly cascading serial flash EPROMs (maximum 16 Mbits); (7)Maximum 63 voice segments available in multi-segment operation; (8)Provides selective record, erase, and playback functions; (9)Provides low power detection circuit at 3.0V; (10)Provides both speaker direct drive and speaker current output (5mA).
Diagrams
 |
