Product Summary

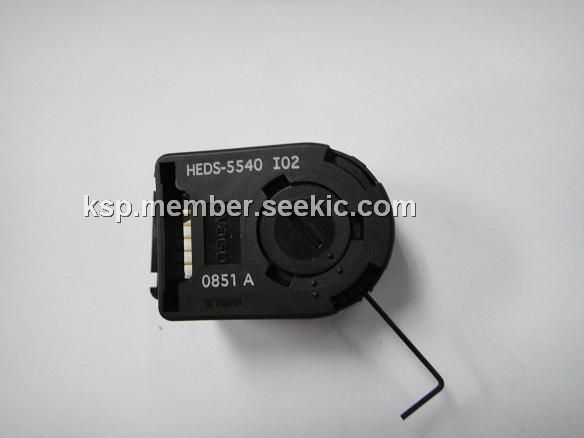

The HEDS-5540 I02 is a Two and Three Channel Codewheel for Use with Agilent Optical Encoder Modules. Agilent Technologies offer a wide variety of codewheels for use with Agilent’s HEDS-9000, HEDS-9100, HEDS-9040, and HEDS-9140 series Encoder Modules. Designed for many environments, applications, and budgets, Agilent codewheels are available in Glass, Film, and Metal. The codewheel HEDS-5540 I02 is available in resolutions from 96 Counts Per Revolution (CPR) to 1024 CPR on an 11 mm optical radius and 500 to 2048 CPR on a 23.36 mm optical radius.

Parametrics

HEDS-5540 I02 absolute maximum ratings: (1)Storage Temperature, TS: -40 to +100℃; (2)Operating Temperature, TA: -40 to +100℃; (3)Velocity: 30,000 RPM; (4)Shaft Axial Play: ± 0.25 mm (± 0.010 in); (5)Shaft Eccentricity: ± 0.1 mm; (6)Plus Radial Play: (± 0.004 in) TIR; (7)Acceleration: 250,000 Rad/Sec2.

Features

HEDS-5540 I02 features: (1)Codewheels Available in Glass, Film, and Metal; (2)Available in Two Standard Diameters; (3)Cost Effective; (4)Resolutions from 96 CPR to 2048 CPR; (5)For Use with HEDS-90XX/91XX Series Two and Three Channel Encoders.

Diagrams

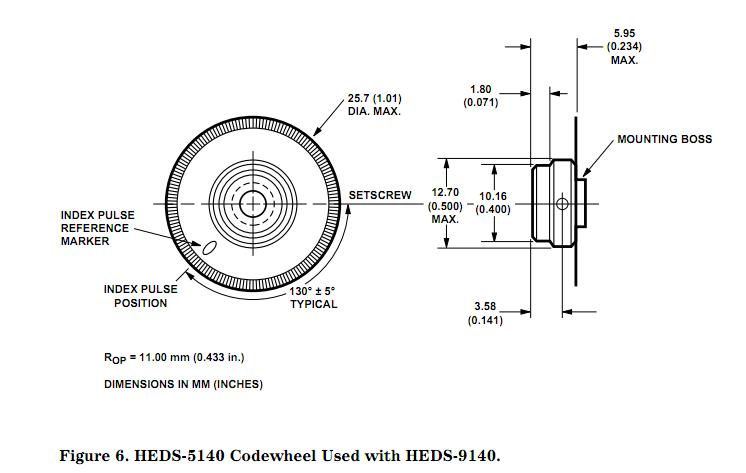

HEDS-5540 I02 block diagram
