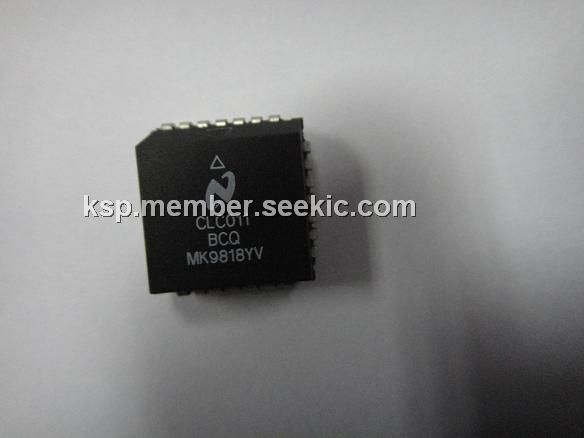

Product Summary

The CLC011BCQ is a Digital Video Decoder. It decodes and descrambles SMPTE 259M standard Serial Digital Video datastreams with serial clock into 10-bit parallel words and a corresponding word-rate clock. SMPTE 259M standard parallel data is encoded and scrambled using a 9-bit shift register and is also converted from NRZ to NRZI. The CLC011BCQ restores the original parallel data by reversing the encoding process. The CLC011BCQ also extracts timing information embedded in the SDV data.

Parametrics

CLC011BCQ absolute maximum ratings: (1)Supply Voltage (VCC–VEE): +6V; (2)Storage Temperature Range: -65 to +150℃; (3)Junction Temperature: +150℃; (4)ESD Rating (HBM): 500V; (5)Package Thermal Resistance: 85℃/W.

Features

CLC011BCQ features: (1)Data decoding and deserializing; (2)CLC011B operates to 360Mbps; (3)CLC011A operates to 300Mbps; (4)Low noise injection to power supplies; (5)Single +5V or 5.2V supply operation; (6)Output levels programmable for interface to 5V or 3.3V logic; (7)Low power; (8)Low cost.

Diagrams

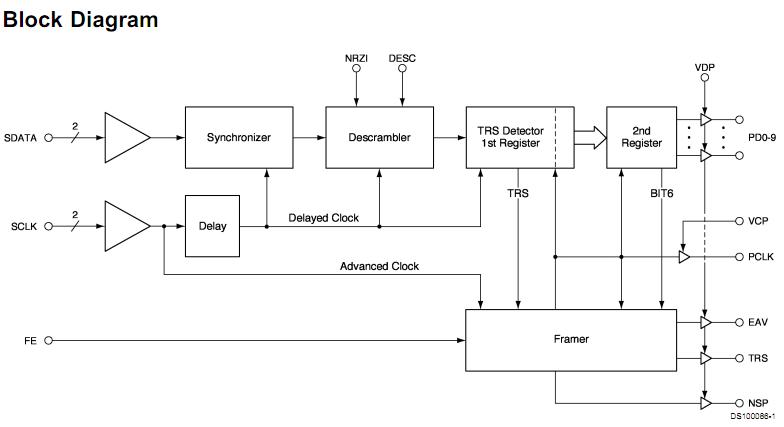

CLC011BCQ block diagram
