Product Summary

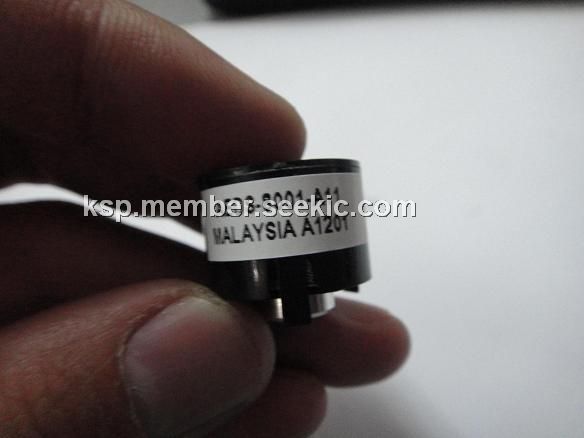

The AEDS-8001-A11 is a two-channel optical incremental encoder kit with code-wheel integrated in a protective housing. The encoder is lead free and compliant to the RoHS directive. Each encoder kit consists of a collimated LED source and a detector IC enclosed within a small plastic package. The applications of the AEDS-8001-A11 include Pick and Place machines, Semiconductor equipment and Factory automation equipment.
Parametrics
AEDS-8001-A11 absolute maximum ratings: (1)Storage Temperature, TS: -20 to 85℃; (2)Supply Voltage, Vcc: -0.5 to 7 V; (3)Output Voltage, Vout: -0.5 to Vcc; (4)Output Current per Channel, Iout: ±150 mA; (5)Shaft Axial Play: ± 0.100 mm; (6)Shaft Radial Play Plus Eccentricity: ±0.080 mm.
Features

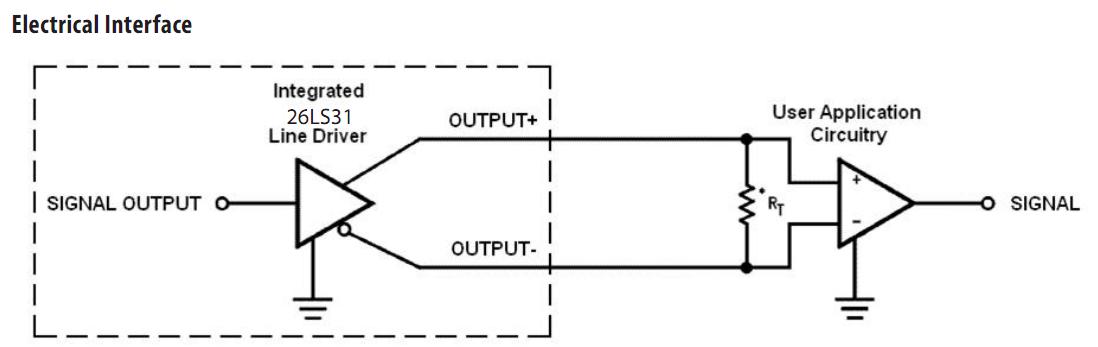

AEDS-8001-A11 features: (1)3-channel differential output (A,B) with ungated, gated-90 ° and gated-180 ° index pulse (I); (2)2-channel differential output available; (3)Up to 500 Cycles Per Revolution (CPR); (4)Up to 30000 rpm motor speed; (5)-40 to 100℃ operating temperature; (6)Single 5 V supply; (7)Integrated RS-422 line driver ; (8)Quick and easy assembly.
Diagrams
