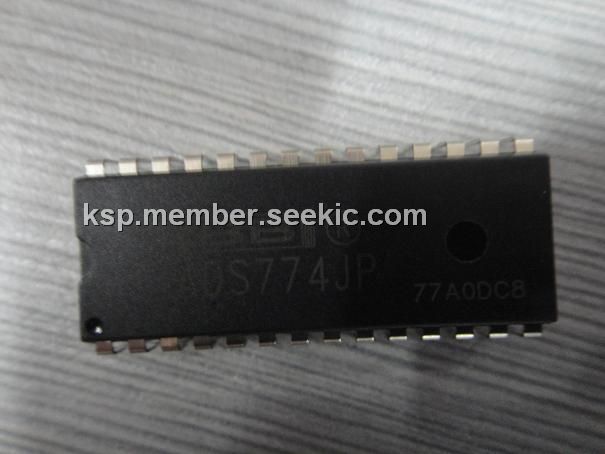

Product Summary
The ADS774JP is a 12-bit successive approximation analog-to-digital converter using an innovative capacitor array (CDAC) implemented in low-power CMOS technology. This is a drop-in replacement for ADC574, ADC674, and ADC774 models in most applications, with internal sampling, much lower power consumption, and the ability to operate from a single +5V supply. The ADS774JP is complete with internal clock, microprocessor interface, three-state outputs, and internal scaling resistors for input ranges of 0V to +10V, 0V to +20V, ±5V, or ±10V. The maximum throughput time is 8.5ms over the full operating temperature range, including both acquisition and conversion.
Parametrics
ADS774JP absolute maximum ratings: (1)VEE to Digital Common: +VDD to –16.5V; (2)VDD to Digital Common: 0V to +7V; (3)Analog Common to Digital Common: ±1V; (4)Control Inputs (CE, CS, AO, 12/8, R/C) to Digital Common: –0.5V to VDD +0.5V; (5)Analog Inputs (Ref In, Bipolar Offset, 10VIN )to Analog Common : ±16.5V; (6)20VIN to Analog Common: ±24V; (7)Ref Out: Indefinite Short to Common, Momentary Short to VDD; (8)Max Junction Temperature: +165℃; (9)Power Dissipation: 1000mW; (10)Lead Temperature (soldering,10s): +300℃; (11)Thermal Resistance, qJA : Plastic DIPs : 100℃/W; SOIC: 100℃/W.
Features
ADS774JP features: (1)replaces adc574, adc674 and adc774 for new designs; (2)complete sampling a/d with reference, clock and microprocessor interface; (3)fast acquisition and conversion: 8.5us max over temperature; (4)eliminates external sample/hold in most applications; (5)guaranteed ac and dc performance; (6)single +5v supply operation; (7)low power: 120mw max; (8)package options: 0.6" and 0.3"DIPs, SOIC.

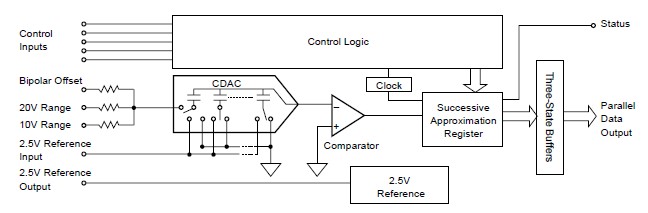

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS774JP |
Texas Instruments |
ADC (A/D Converters) Mcrprcsr-Compatible Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS774JPG4 |
Texas Instruments |
ADC (A/D Converters) Mcrprcsr-Compatible Sampling CMOS |
Data Sheet |
|
|
||||||||||||
